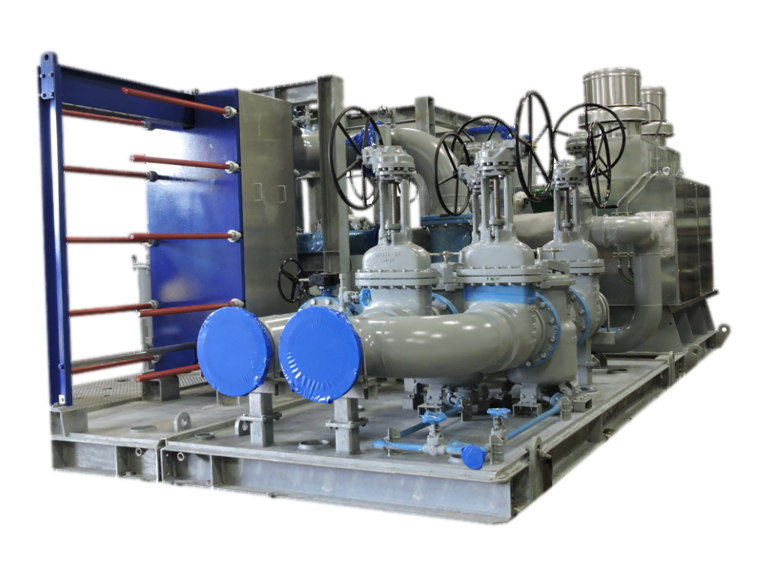

PROCESS AND PRODUCTION EQUIPMENT SKID

SPECIFICATIONS
SIZES 2" TO 100", LARGE SIZES ALSO AVAILABLE UPON REQUEST
CLASS RATINGS CL 150 TO 600, HIGH PRESSURE CLASSES ALSO AVAILABLE UPON REQUEST
APPLICATION PROCESS AND PRODUCTION EQUIPMENT SKIDS FINDS APPLICATION IN THE FOLLOWING APPLICATIONS. 1. PUMP SYSTEM 2. LUBRICATION SYSTEM 3. CHEMICAL PROCESSING 4. CIP SYSTEMS 5. DEMONSTRATION PLANTS 6. FMCG INDUSTRIES 7. MIXING SYSTEMS 8. PETROLEUM PROCESSING 9. PILOT PLANTS 10. WASTEWATER TREATMENT SYSTEMS. 11. BATCH PROCESSING SKIDS
FEATURES AND BENEFITS THE FOLLOWING ARE SOME ADVANTAGES OF PROCESS AND PRODUCTION EQUIPMENT SKID. 1. EASY TRANPORTABILITY 2. MINIMAL SITE WORK 3. PLUG & PAY 4. PRE-DEFINED SKID LAYOUT

Note:

 MANUFACTURING SIZES RANGES WILL BE BASED ON HIGH PRESSURE CLASSES, SERVICE APPLICATION AND SPECIAL REQUIREMENTS IF ANY.

 CONSULT FACTORY FOR LARGE SIZE VALVES.

STANDARD REFERENCE
DESIGN & MANUFACTURING ASME B16.34, ASME BPVC SECTION VIII & IX, ASME B16.42/ API 5L M-CR-630 MANUFACTURING STANDARD
FACE TO FACE MANUFACTURING STANDARD
END CONNECTION ASME B16.5, ASME B16.47 SERIES A & B, EN 10092-1, NORSOK U-001
TESTING API 598, EN 12266 - 1 & 2, BS 6755 PART-1, ISO 5208, EN 10204, ASME B16.34, AS PER CUSTOMER STANDARDS / SPECIFICATIONS
NACE COMPLIANCE NACE MR 0175 / ISO 15156, NACE MR 0103
PT RATING ASME B16.34, MANUFACTURING STANDARD
MATERIAL OF CONSTRUCTION
VALVES / STRUCTURES CARBON STEEL (CS), LOW TEMPERATURE CARBON STEEL (LTCS), OTHER MATERIALS ALSO AVAILABLE UPON CUSTOMER REQUIREMENT.
PIPINGS CARBON STEEL (CS), LOW TEMPERATURE CARBON STEEL (LTCS), OTHER MATERIALS ALSO AVAILABLE UPON CUSTOMER REQUIREMENT.
SEALING ELEMENT PTFE, RPTFE, NYLON, OTHER SPECIAL MATERIALS
O-RINGS VITON, NBR, EPDM, OTHER SPECIAL MATERIALS
FASTENERS ASTM A193 Gr.B7 / A194 Gr.2H, ASTM A193 Gr.B7M / A194 Gr.2HM, ASTM A320 Gr.L7 / A194 Gr.7, ASTM A320 Gr.L7M / A194 Gr.7M, ASTM A193 Gr.B16 / A194 Gr.4, OTHER SPECIAL MATERIALS

Note:

 ACTUAL MATERIALS OF CONSTRUCTION WILL DEPENDS UPON THE SIZE, PRESSURE CLASS, TEMPERATURE AND SERVICE CONDITIONS.

 FEA , CFD ANALYSIS, SESMIC ANALYSIS, VIBRATION ANALYSIS etc. SHALL BE CARRIED OUT UPON CUSTOMER REQUIREMENT

 OTHER MATERIALS ARE ALSO AVAILABLE UPON THE REQUEST.

 SPECIAL NDE & OTHER TESTING SHALL BE PERFORMED UPON CUSTOMER REQUIREMENT.
